Expolux technische gegevens



HEIGHT AND CLEAR WIDTH

Adjustable foot high:
height floor min. 117 mm / max. 159 mm
Clear width min. 53 mm / max. 95 mm

Adjustable foot low:
Height floor min. 95 mm / max. 137 mm
Clear width min. 31 mm / max. 73 mm



LOAD CAPACITY

basic floor
 extra support



EXTRA SUPPORT



Click here for the instruction film about the placement of extra support for the Expolux floor system

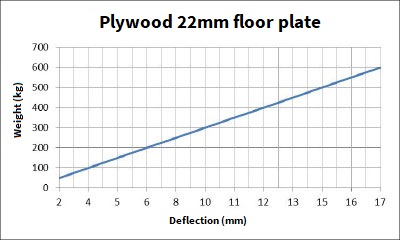

DEFLECTION TEST 1
We measure the deflection of the wooden plate and the frame profile at pressure point X.

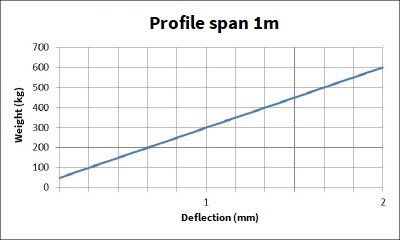

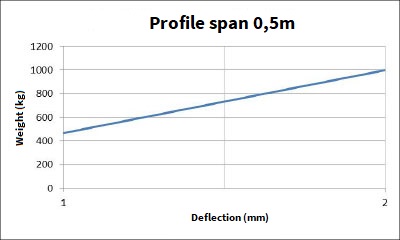

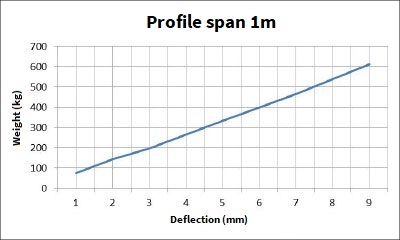

DEFLECTION TEST 2
We measure the deflection of the wooden plate and the frame profile at spans of 1m and 0.5m.
